Infratech WD-Series 39" Dual Element 4000W Heater

Item #: WD4024SS
$820.00
FREE FREIGHT SHIPPING Learn More about items that ship via LTL Freight
On/Off Switch
Choose this option for simple, straightforward operation of a single-element Infratech heater. The heater operates at full power when switched on and turns completely off when not needed. This control is only available for single-element heaters and is a good choice when adjustable heat levels are not required.

Duplex/Stack Switch
Designed for dual-element Infratech heaters, this control allows each heating element to be operated independently. Turn on one element for approximately half heat output or both elements for full heat output. This provides simple two-stage heat adjustment without the added cost of a fully variable control system, and is the most popular option used for dual element heaters.

INF Input Regulator
The INF regulator provides adjustable heat output for compatible single-element heaters, allowing you to increase or decrease the heat based on comfort and weather conditions. Rather than functioning like a traditional dimmer, it cycles power to the heater to maintain the selected heat level. Choose this option when you want more flexibility than a basic on/off switch without upgrading to an advanced control system.

Control Configuration and Mounting Options
All three control types are available in single-control or double-control configurations. Mounting options include in-wall controls for indoor or protected outdoor areas, in-wall controls for exposed outdoor areas, and surface-mounted controls for exposed outdoor areas. Select the enclosure and mounting style that matches the control location and its level of exposure to weather.
Flush-Mount Kit
The flush-mount kit recesses the heater into the ceiling for a clean, built-in appearance. This option is only compatible with the W-Series and WD-Series heaters. Special installation considerations and requirements apply for flush-mount applications. Refer to the installation manual for complete steps, specifications, and requirements before installation.

Drop-Pole Mount
The drop-pole mount suspends the heater below a high, vaulted, or uneven ceiling, helping position it closer to the recommended heating height. The adjustable pole extends from approximately 29 to 72 inches and conceals the electrical conduit within the pole for a finished appearance. Standard options are commonly offered in white, black, and bronze, with additional finishes potentially available by special order.

Freestanding Pole Mount
The freestanding pole mount provides a permanent installation when wall or overhead mounting is not available. It supports compatible heaters using a dedicated pole, crossbar, and bracket configuration selected for the heater model and length. Proper structural support and placement are required; refer to the installation manual for mounting requirements, clearances, and installation details.

Important Mounting Considerations...
Mounting accessories are model-specific and may not be interchangeable between heater series or configurations. Verify compatibility, clearances, mounting requirements, and electrical needs before ordering. All installations must follow Infratech guidelines, local codes, and be completed by a qualified licensed electrician. For assistance selecting the right mounting solution, contact one of our professionals.
Adding to cart… The item has been added

shipping information

Flame Source is proud to offer free freight shipping! These items are delivered
curbside only—you are responsible for moving the shipment from there. Most carriers do not schedule delivery appointments, so please track your shipment closely. Upon delivery, you must inspect the shipment for visible damage before signing for it. If damaged,
refuse the shipment and notify us immediately at 947-941-4111. If damage is discovered after delivery, you have 48 hours to report it. For full shipping details, please review our
Shipping Policy. Questions? Give us a call! (please link this to our shipping policies page).

don’t forget these

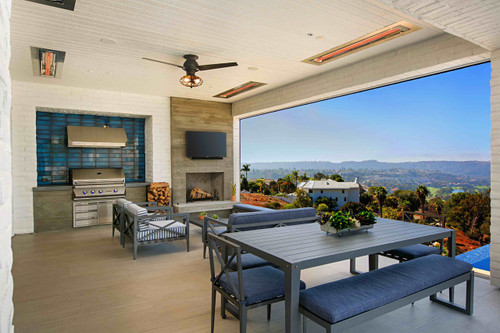

The Infratech WD-Series Dual Element 4000W Heater is a high-powered, dual-element patio heater that will provide more concentrated heat for large-scale coverage needs. This powerful heater is ideal for mounting heights from 8 to 10 feet and provides large coverage areas of warmth and comfort.

Outdoor living spaces come in all sizes, styles, and layouts. With various lengths, heat outputs, color options, control options, and mounting options, Infratech Heaters can solve any outdoor heating challenge.

Transform your residential or commercial outdoor space with a heating solution from Infratech, and achieve the comfort you deserve.

Features:

  • Made in the USA
  • UL listed
  • Corrosion-resistant 304 stainless steel construction
  • Zero noise, odor, or greenhouse gases
  • Ceiling, Wall, Drop-Pole, or Flush mounting options available (ceiling and wall mount brackets included)
  • Dimensions: 39" L x 8 3/16" W x 3" H
  • 4000 watts
  • Heat coverage up to 8' x 10'
  • Compatible with a variety of custom control options
    • Duplex/Stack Switch: Allows you to turn each of the two elements on or off independently
    • Solid State Controls: Allows you to pulse the heat on and off at regular intervals (Reach out for more details)
    • Universal Controls: Allows you to control your heater via Wi-Fi/Bluetooth (Reach out for more details)
    • Home Management System: Allows you to integrate directly with centralized home automation systems (Reach out for more details)
  • Multiple voltage options available

*Installation Note: Infratech electric patio heaters are designed to be hard-wired to a dedicated circuit by a licensed electrician.

Purchase with confidence by calling 947-941-4111 to speak with one of our NFI-certified product specialists for assistance with product selection and available options, installation questions, and current pricing & lead time.

*Photos may represent various sizes, colors, and options available.

Shipping Weight:
16 Ibs
Type:
Electric
Length:
39"
Series:
WD
Width:
8.19"
Marine Grade:
No
Height:
3"
Material:
304 Stainless Steel
Max Heat Output:
13648 BTU
Style:
Celling, Wall, Drop-Pole, or Flush Mounted
Heating Area:
8' x 10'
Emitter Grid:
Quartz
Heating Method:
Infrared
IPX Rating:
IPX4
Wattage:
4000
Certifications:
UL Certified
Voltage:
208 / 240 / 277 / 480
Warranty:
See downloads
Amperage:
19.2 / 16.7 / 14.4 / 8.3
Infratech WD-Series Spec Sheet
Infratech WD-Series User and Installation Guide
Infratech Mounting Options
Infratech Duplex Switch Spec Sheet
Infratech Duplex Switch Options
Infratech Brochure
Infratech Warranty
Drop Pole Mount Spec Sheet
Flush Mount Spec Sheet
